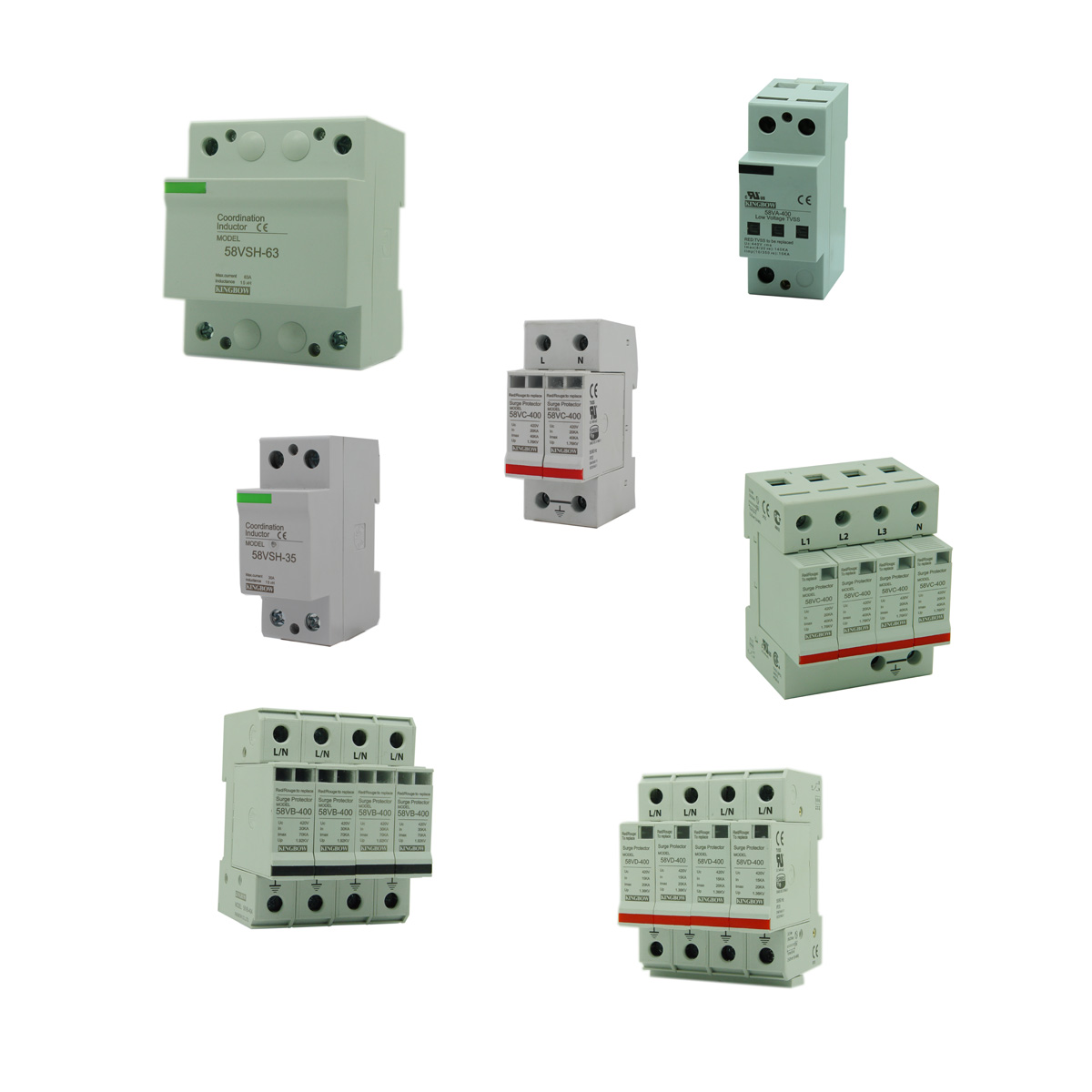

Lightning surge protectors58V Parallel connection For AC power supply Series
Model Function
58VA 220VAC Imax:140KA(Parallel connection)
58VB 220VAC Imax:70KA(Parallel connection)
58VC 220VAC Imax:40KA(Parallel connection)
58VD 220VAC Imax:20KA(Parallel connection)
58VE 220VAC Imax10KA(Parallel connection)
58VGA Ground line use Imax150KA(Parallel connection)
58VGB Ground line use Imax30KA(Parallel connection)
58VSH Coordination Inductance
58VSG Balance electric potential connector
Products
58V Series

Type

Parallel connection For AC power supply use:
220VAC Imax:140KA
220VAC Imax:70KA
220VAC Imax:40KA
220VAC Imax:20KA
220VAC Imax:10KA
Power supply See detail spec. data sheet
Discharge current capacity See detail spec. data sheet
Remains Voltage See detail spec. data sheet
Response time Between lines: 2ns
Line to ground: 10ns
See detail spec. data sheet
Leakage Current See detail spec. data sheet
Construction Parallel connection
Housing material Flame-resistant resin
Operating data Temperature:-40- +85
Humidit :30- 90%RH(non-condensing)
Display Colour
Resistance connect to ground 4
Connection M5 or M6 screw terminals
Approvals IEC616431
UI1449
Mounting 35mm DIN rail
Dimensions See detail spec. data sheet
Weight See detail spec. data sheet
