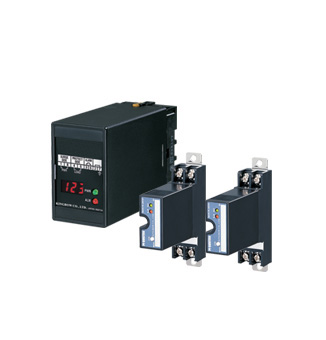

Lightning surge protectorsSelf-detect Lightning surge protectors 58X Series
Model Function
58XS-D4 4-20mA signal line lightning surge protectors
58XS-TC TC signal line lightning surge protectors
58XS-TR RTD signal line lightning surge protectors
58XP-A5 AC 5A power supply line lightning surge protectors


Products
58X Series

Type

For standard signal line use:
4-20mA
RTD
T/C
For Power line use:
220VAC 5A
Power supply See detail spec. data sheet
Discharge current capacity 10KA
Remains Voltage See detail spec. data sheet
Response time Between lines: 2ns
Line to ground: 10ns
Leakage Current See detail spec. data sheet
Construction Plug-in in series
Housing material Flame-resistant resin
Operating data Temperature:-10- +55
Humidity :30- 90%RH
Display LED or LCD
Resistance connect to ground 10
Connection M4 screw terminals
Approvals CE
Mounting Wall surface or 35mm DIN rail
Dimensions See detail spec. data sheet
Weight See detail spec. data sheet
