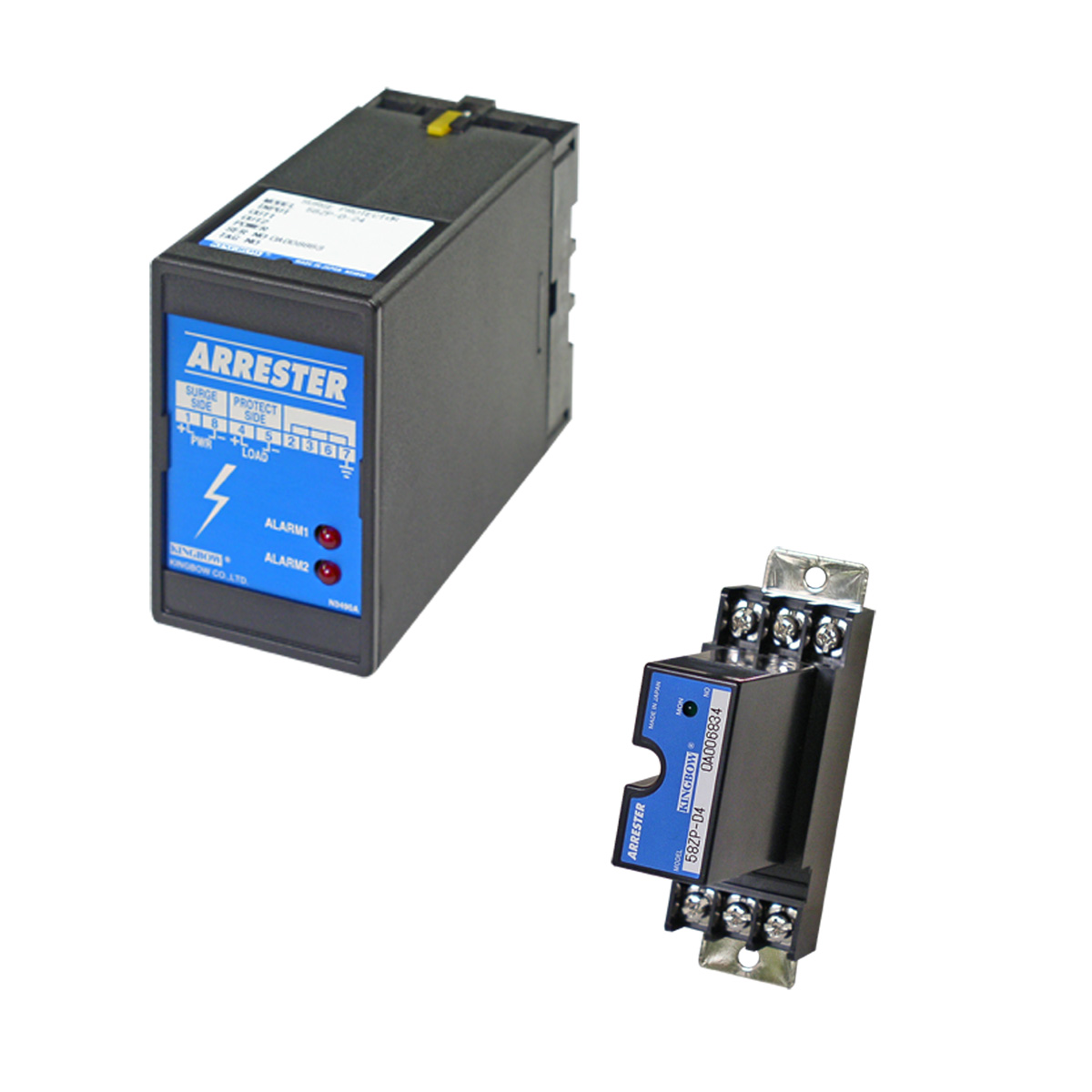

Lightning surge protectors58Z For DC power supply Series
Model Function
58ZP-D4 1A (Series connection, Plug-in)
58ZP-D 5A (Series connection, Plug-in)




Products
58Z Series

Type

For DC power supply use:
24VDC 1A
24VDC 5A
Power supply See detail spec. data sheet
Discharge current capacity 10KA
Remains Voltage See detail spec. data sheet
Response time Between lines: 2ns
Line to ground: 10ns
See detail spec. data sheet
Leakage Current See detail spec. data sheet
Construction Connected in series
Housing material Flame-resistant resin
Operating data Temperature:-10- +55
Humidity: 30- 90%RH
Display LED
Resistance connect to ground 10
Connection M4 screw terminals
Approvals CE
UL
Mounting Backplane / 35mm DIN rail mounting
Dimensions See detail spec. data sheet
Weight See detail spec. data sheet
