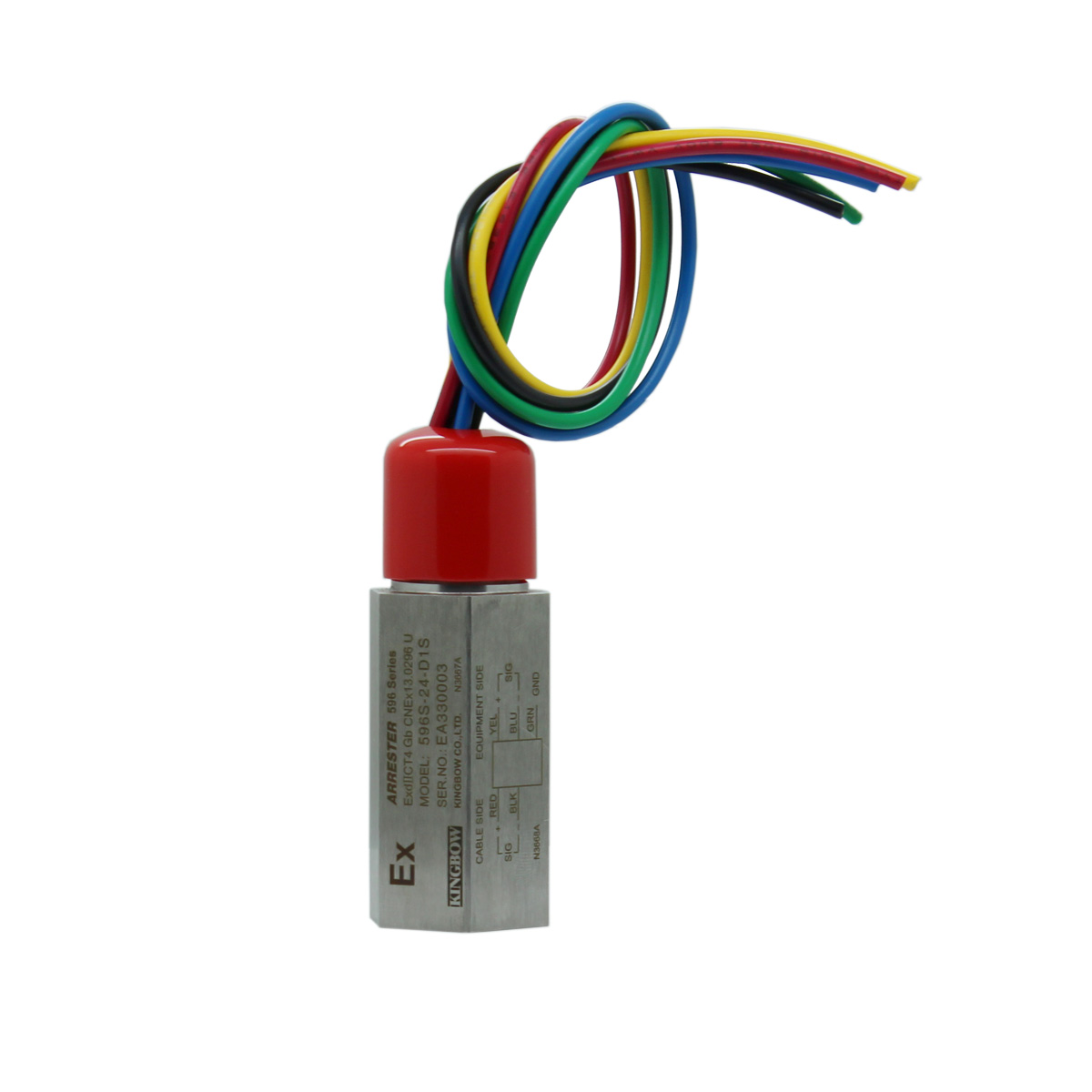

Lightning surge protectorsThreaded connection mounting 596S Series
Model Function
596S 4-20mA (series connection, flameproof)




Products
596S Series

Type

For signal line use:
2-wire transmitter 4-20mA
3-wire transmitter 4-20mA,24VDC power supply
Line voltage See detail spec. data sheet
Discharge current capacity 20KA
Remains Voltage See detail spec. data sheet
Response time Between lines:2ns
Line to ground:10ns
Leakage current See detail spec. data sheet
Housing materials Stainless steel
Operating data Temperature:-40 - +85
Humidity: 5 -95%RH
Accuracy 0.075%/F.S See detail spec. data sheet
Display -
Resistance connect to ground 4
Connection -
Wiring conduit 1/2NPTOther standard conduit available
Approvals CE
UL
Ex
Mounting Screw into a wiring conduit of outdoor enclosers
Dimensions See detail spec. data sheet
Weight See detail spec. data sheet
