Lightning surge protectors59S For AC power supply Series
Model Function
59SP-A3 220VAC 3A (series connection,, 35mm DIN rail mounting)
59SP-A5 220VAC 5A (series connection)

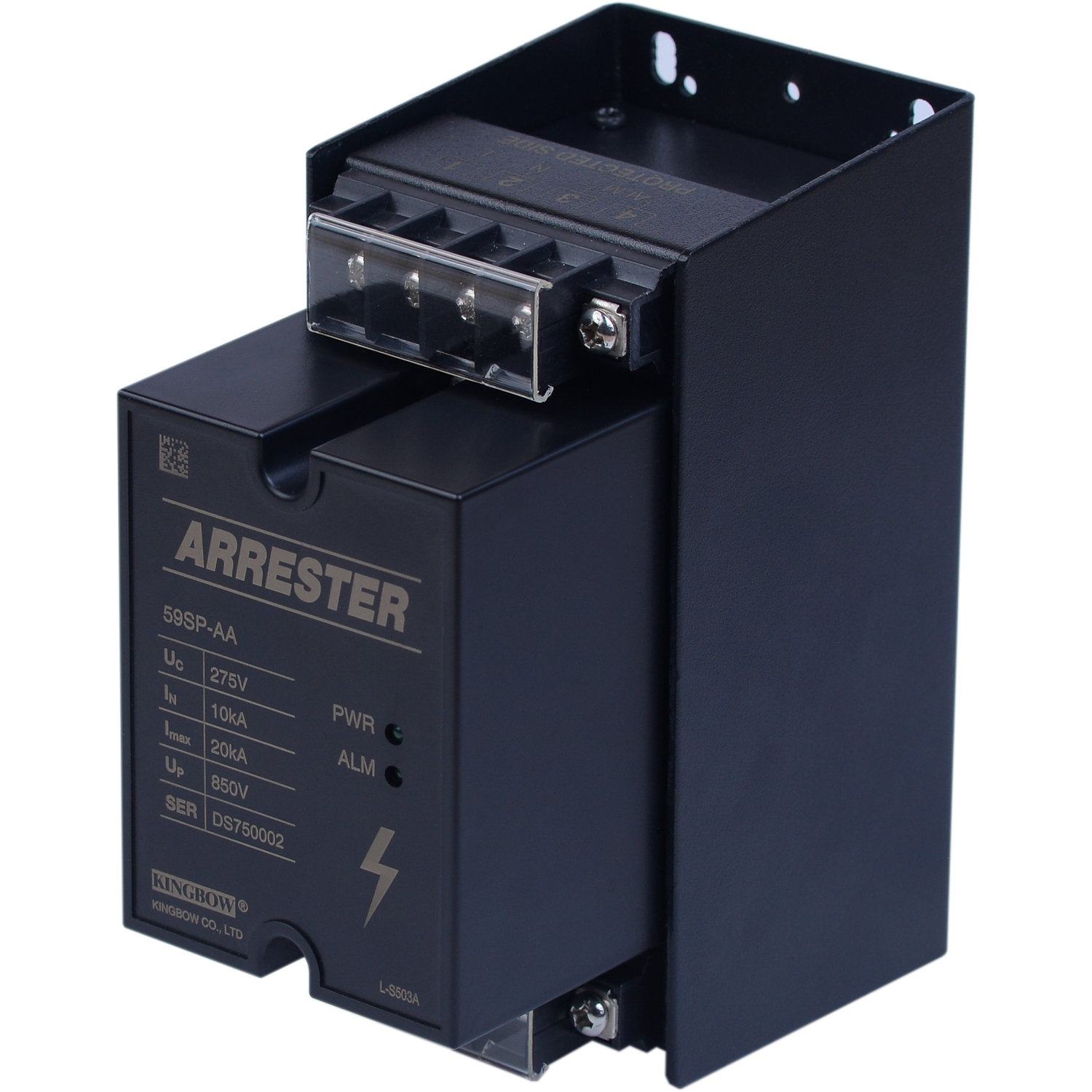

59SP-AA 220VAC 10A (series connection)
59SP-AB 220VAC 20A (series connection)
59SP-AC 220VAC 30A (series connection)


Products
59S Series

Type

For AC power supply use:
220VAC 3A
220VAC 5A
220VAC10A
220VAC 20A
220VAC 30A
Power supply See detail spec. data sheet
Discharge current capacity 20KA
Remains Voltage See detail spec. data sheet
Response time Between lines: 2ns
Line to ground: 10ns
See detail spec. data sheet
Leakage Current See detail spec. data sheet
Construction Connected in series
Housing material Flame-resistant resin
Operating data Temperature:-25- +85
Humidity: 30- 90%RH
Display LED
Resistance connect to ground 10
Connection M4 screw terminals
Approvals CE
UL
Mounting Backplane
Dimensions See detail spec. data sheet
Weight See detail spec. data sheet
