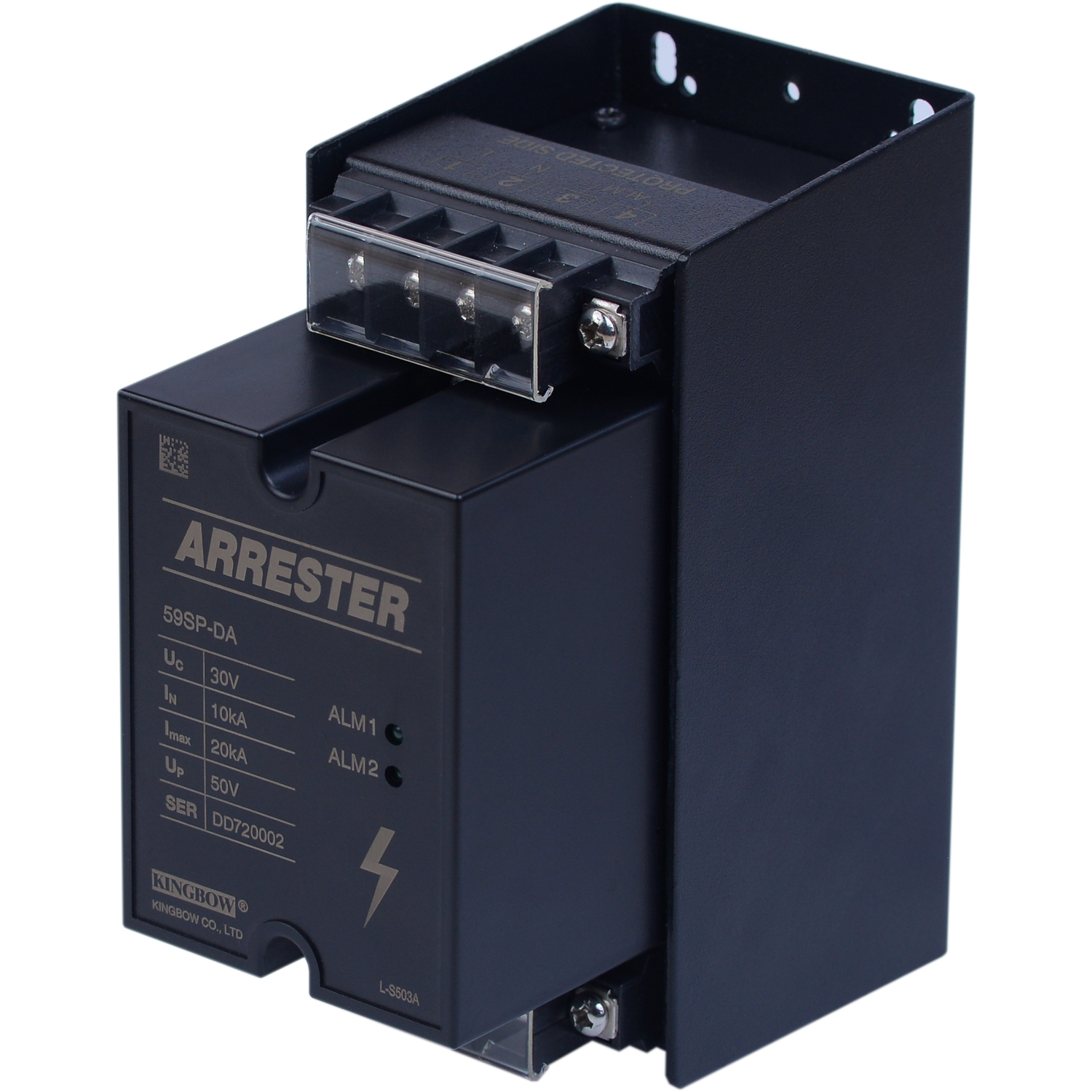

Lightning surge protectors59S For DC power supply Series
Model Function
59SP-D1 1A (Series connection, Plug-in,35mm DIN rail mounting)
59SP-D5 5A (Series connection, Plug-in, Backplanemounting)




Products
59S Series

Type

For DC power supply use:
24VDC 1A
24VDC 5A
Power supply See detail spec. data sheet
Discharge current capacity 20KA
Remains Voltage See detail spec. data sheet
Response time Between lines: 2ns
Line to ground: 10ns
See detail spec. data sheet
Leakage Current See detail spec. data sheet
Construction Connected in series
Housing material Flame-resistant resin
Operating data Temperature:-25- +85
Humidity: 30- 90%RH
Display LED
Resistance connect to ground 10
Connection M3 screw terminals
Approvals CE
UL
Mounting Backplane mounting or 35mm DIN rail
Dimensions See detail spec. data sheet
Weight See detail spec. data sheet
